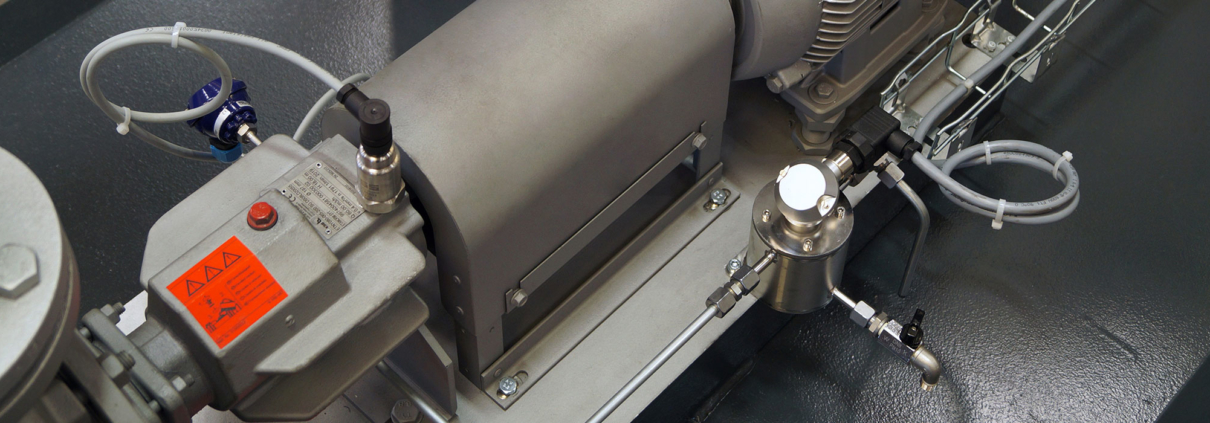

NESS Pump monitoring

Early detection of deviations and leakages

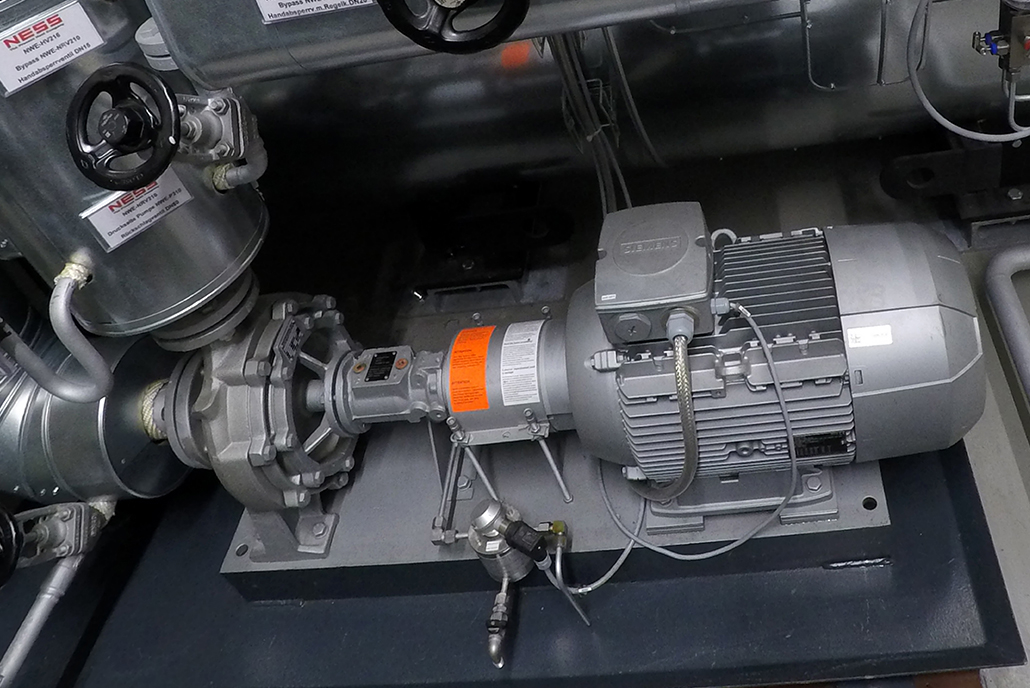

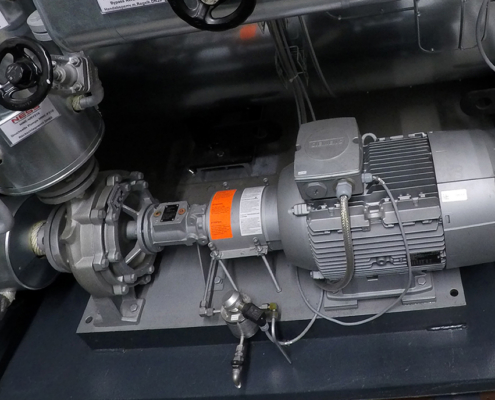

Pump systems are the driving force in all heat generating installations. A pump system consists of a pump (working machine) and an electric motor (drive unit). To operate a thermal oil heating system, a functioning pump system is a prerequisite.
In case of damage, there is a considerable risk of fire and pollution.

Downtimes caused by pumps can quickly exceed the total value of the pump systems.
Therefore, it is important to act preventively and to react quickly to warning signs or damage events. Damage can be minimized or downtime avoided.

Your advantages at a glance

Increased reliability for your pumping system
The 3 sensors monitor the key points for a smooth pumping behavior and warn you in time when action is needed
Your maintenance advantage
The two-stage safety system informs you immediately in case of deviations and malfunctions
Quick amortization
A cost-effective solution that pays off in no time for you and your production processes
Increased safety
Quickly detecting a leakage and repairing the damage is important for your operational safety

More safety in 2-steps

#1 When a first limit is reached, an alarm is triggered

#2 If the critical value is exceeded, it is switched off

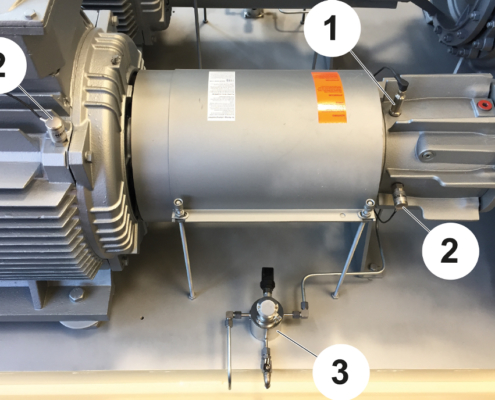

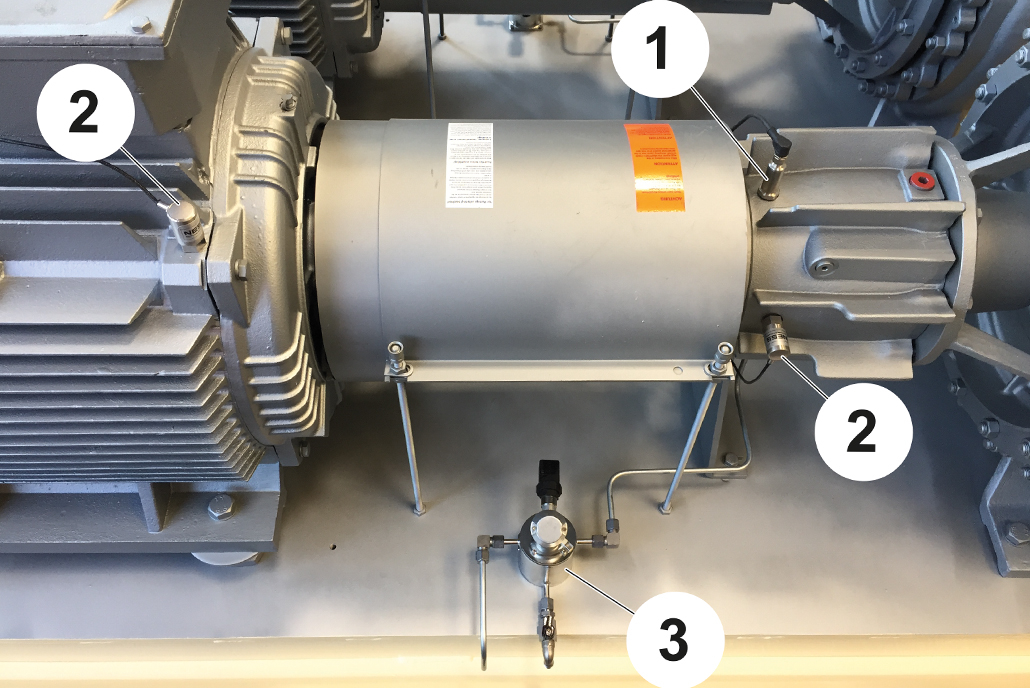

For optimal pump monitoring, 3 important sensor types are essential

NEW – Watch the Video here

Productvideo Pump monitoring

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Unblock content Accept required service and unblock content

Brochures

At a glance

Factsheet - NESS Pump monitoring

Links

FAQ Area

Download Center

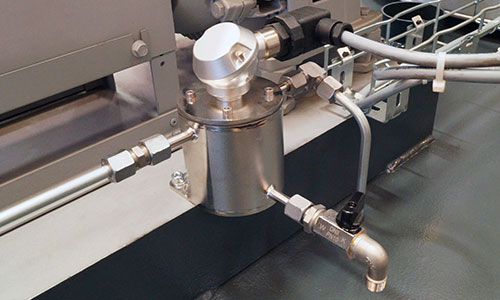

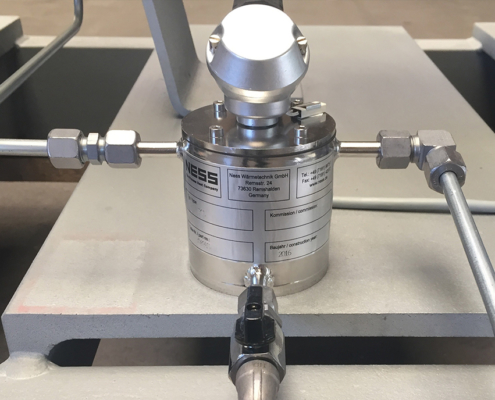

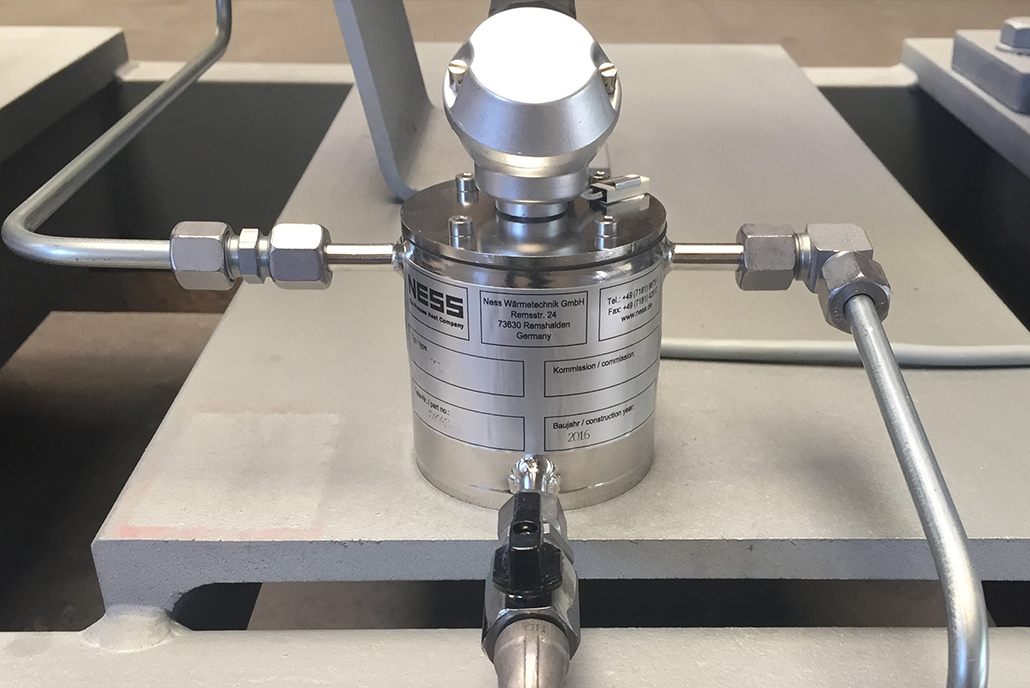

NESS Leakage monitoring (NPCL)

Decreased pump tightness due to wear

The mechanical seals in pumps have a limited lifetime and can fail unexpectedly. If the plant operator discovers the failure of the seal too late or not at all, larger quantities of heat transfer fluid can leak. If thermal oil is used, this means not only a loss of the oil, but also pollution of the system and an increased risk of fire.

Functionality:

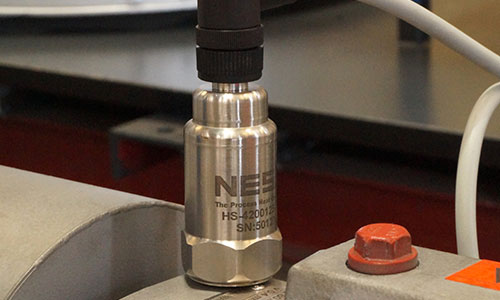

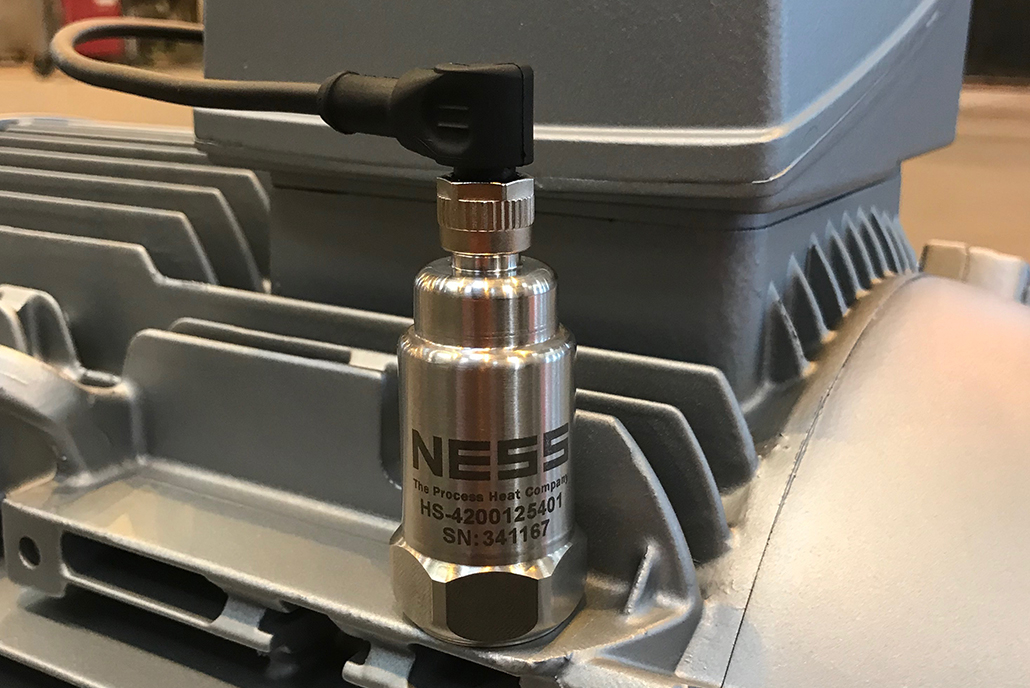

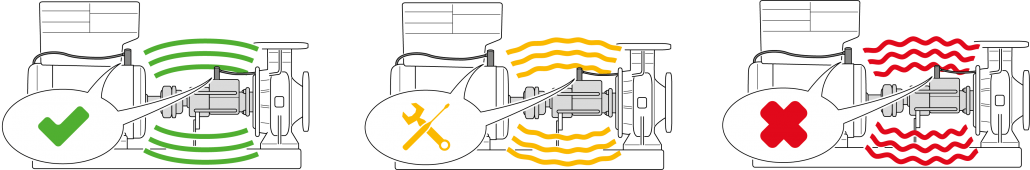

NESS Vibration monitoring (NPCV)

Increased machinery vibrations indicate problems

Many causes of damage to pump systems lead of an increase in machine vibration. In some cases, they can be recognized by the human ear. However, the continuous measurement of the machine vibrations is considerably more reliable.

Functionality:

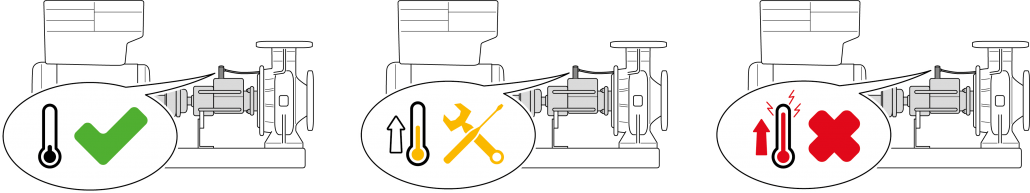

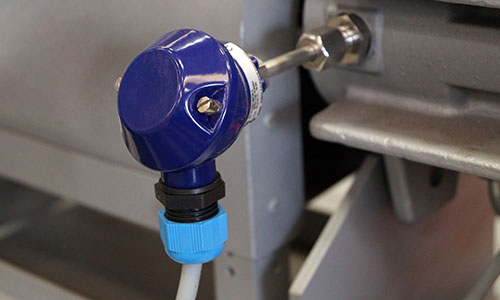

NESS Bearing temperature monitoring (NPCT)

Early detection due to increased bearing temperature

During operation, the temperature of the pump bearings is in a normal range. In case of a defect, their temperature rises and the risk of overheating crops up. A loss of performance or failure of the pump is the result.

Functionality:
